Analog Devices AD1807/1804


Chipset data:

Manufacturer
Analog Devices, Inc., a custom chipset for 3Com, based on the ADSP-2189.
Datasheet not available
Applications
Controllerless modem, small footprint
Identifiers
PCI vendor ID: 12B9, PCI device ID: 1007
Linux support
3Com has not released a Linux driver for the AD1807/1804-based Winmodems
Components
AD1807  Data Pump
AD1804  Silicon DAA
AD1803  Voice Codec     24-pin TSSOP (optional)
AD1807JS package AD1807XS package AD1804 package AD1803 package
Typical application

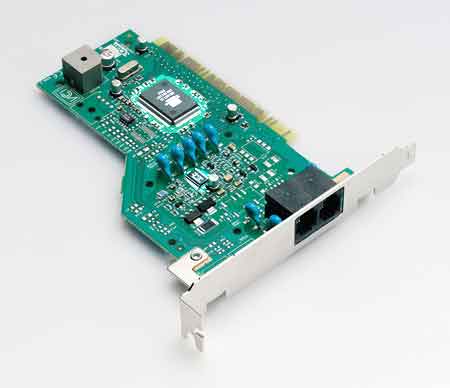

3Com 5699A modem with AD1807/AD1804 chipset
