Cirrus Logic CLM (CL-MD562xT)


Chipset data:

Manufacturer
Intel Modem Silicon Operation formerly Ambient, formerly Cirrus Logic, datasheet
Applications
PCI bus controllerless (HCF) modem
Linux support
Intel does not support the CLM modems on Linux. There are GPL'ed alpha drivers available.
Identifiers
PCI Vendor ID: 1013, Device ID: 4000
Components
  CL-MD1724             SAFE
  CL-MD1724T            SAFE
  CL-MD1724T-11VC-A     SAFE          44-pin VQFP
  CL-MD56x0DT-QC-A      DSP          160-pin PQFP
  CL-MD5620DT-QC-CF     DSP
  CL-MD56x0DT-VC-A      DSP          176-pin VQFP

  CL-MD5620T = CL-MD5620DT + CL-MD1724T              [D/F/V]
  CL-MD5622T = CL-MD5620DT + CL-MD1724T + CL-MD1724T [D/F/V/FDSP]
  CL-MD5632T = CL-MD5630DT + CL-MD1724T + CL-MD1724T [D/F/V/FDSP/DSVD upgrade option]

  SAFE=Sigma-Delta Analog Front End Device

Images
Cirrus Logic CL-MD5620DT-QC-B package Cirrus Logic MD1724T-11VC-A package
Typical application

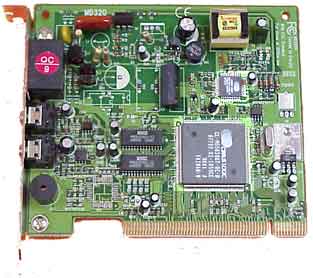

Protac MD320 modem with Cirrus CLM chipset
